Optimized Launch and Spin
Multiple weight and flex profiles let a fitter target a more useful launch window and spin rate for the player’s delivery.

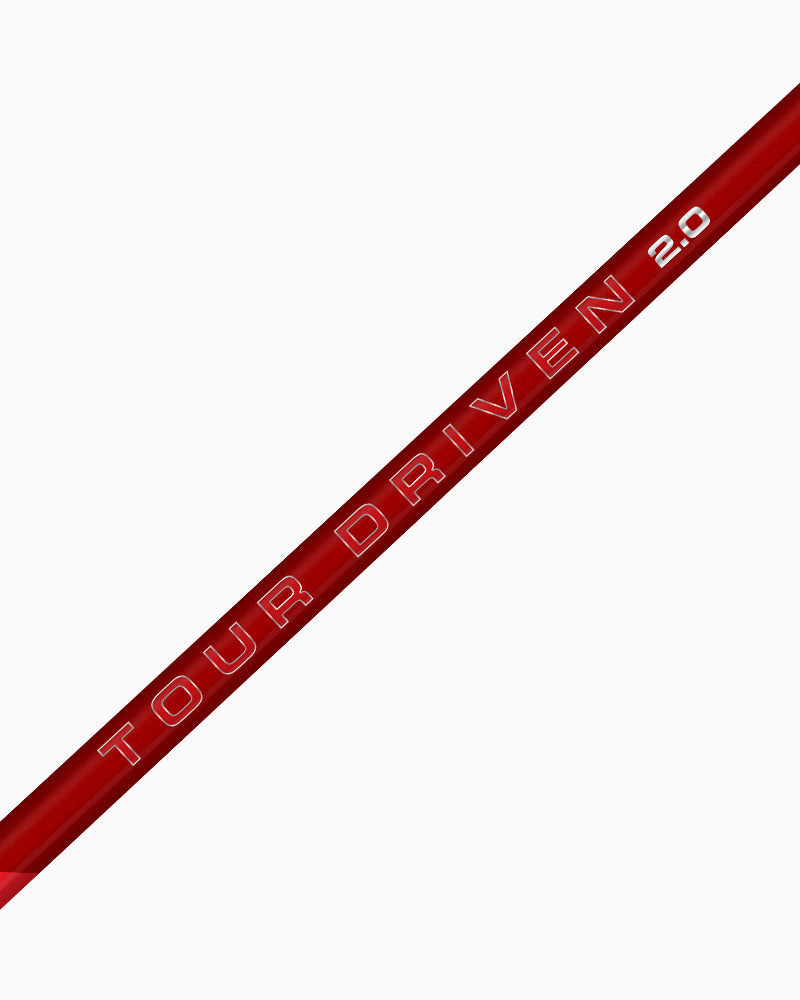

KBS TD 2.0 Graphite Wood Shaft
Regular price
$150.00
Sale price
$150.00
Regular price
Unit price
Sale
Estimated Handling Time
1-2 Days, Free Shipping
Carrier transit time begins after your order ships.
KBS TD 2.0 Graphite Wood Shaft
Overview
Shipping and Returns
The next generation of Tour Driven
KBS TD 2.0 Graphite Wood Shaft
TD 2.0 combines premium graphite materials, a Tour Driven profile and KBS Butt-to-Tip Energy Transfer engineering to help golfers optimize launch, spin, speed and stability—without losing the responsive feel KBS is known for.
50g–70g R2 Through Tour X Driver & Fairway .335" Wood Tip
Nine Exact ConfigurationsWeight and flex combinations from 50R2 through 70TX
46-Inch Raw LengthBuilt for custom driver and fairway-wood assembly
Grater Golf SupportHelp with fitting, tip compatibility, trimming and installation
Speed, Stability and Feel—Fit Together
The TD 2.0 family matches weight, flex and trajectory characteristics to give fitters multiple ways to tune the club for the player rather than forcing every swing into one shaft profile.
Consistent Dispersion
Premium materials and a Tour Driven bend profile are engineered to support repeatable delivery and more consistent performance.
Efficient Energy Transfer
KBS Butt-to-Tip Energy Transfer and optimized torsional stiffness are designed to enhance clubhead speed and stability while preserving feel.
TD 2.0 BUTT-TO-TIP ENERGY TRANSFER
Optimized torsional stiffness for speed, stability and responsive feel.
Tour Driven graphite engineering
Designed as a Complete Fitting System
TD 2.0 is more than one bend profile in several paint labels. Its current lineup uses three weight classes and five flex designations in carefully selected combinations, helping the fitter balance speed, timing, trajectory and stability.
- Premium graphite construction
- Weight, flex and trajectory-matched profiles
- Optimized torsional stiffness
- KBS Butt-to-Tip Energy Transfer model
- Nine current weight-and-flex combinations
- Driver and fairway-wood applications
- Standard .335-inch parallel wood tip
TD 2.0 fitting range
Three Weights. Five Flexes. Nine Purposeful Builds.
The correct shaft is determined by the complete fit—not flex alone. Weight, tempo, transition, release pattern, playing length, clubhead weight and desired ball flight all affect how TD 2.0 performs.
50–70gCurrent weight classes
R2–TXAvailable flex range
46"Raw shaft length
.335"Tip diameter
Choose Your TD 2.0 Weight
Start with shaft mass and desired club feel, then choose from the flexes KBS offers in that weight.
R2 • Regular • Stiff
Regular • Stiff • X-Stiff
Stiff • X-Stiff • Tour X
Why are some combinations unavailable? KBS matches weight, flex and trajectory rather than offering every flex in every weight. The nine combinations shown above are the current TD 2.0 product lineup.
Technical Specifications
Grater Golf flex names are shown with their corresponding KBS markings.
| Flex | Available Weight | Raw Length | Tip Diameter | Application |
|---|---|---|---|---|
| R2 | 50g | 46" | .335" | Driver / Fairway Wood |
| Regular (R) | 50g, 60g | 46" | .335" | Driver / Fairway Wood |
| Stiff (S) | 50g, 60g, 70g | 46" | .335" | Driver / Fairway Wood |
| X-Stiff (X) | 60g, 70g | 46" | .335" | Driver / Fairway Wood |
| Tour X (TX) | 70g | 46" | .335" | Driver / Fairway Wood |
Which Weight Might Fit Your Build?
Use these as starting points; a complete fitting should determine the final choice.
50g
Consider the lightest TD 2.0 class when easier speed, lighter total club weight or a more active overall feel is the goal.
60g
A middle-weight starting point for balancing clubhead speed, timing and stability in many driver or fairway-wood builds.
70g
Consider the heaviest current TD 2.0 class when added mass, firmer options or a more substantial feel is preferred.
A heavier shaft is not automatically better for a faster player, and a lighter shaft is not automatically better for a slower player. Transition, strike pattern, playing length and feel preference matter alongside speed.
KBS Standard Trimming Guide
Use the club-specific tip trim before butt trimming to final playing length.
Straight-In DriverNo standard driver tip trim
Fairway Woods Use Progressive Tip Trimming
KBS specifies no tip trim for a standard driver build. The listed standard fairway-wood trims are 1 inch for a 3-wood, 1.25 inches for a 4-wood, 1.5 inches for a 5-wood, and 2 inches for a 7-wood or 9-wood.
Final playing length is established by butt trimming after the head or adapter, insertion depth, grip and swing-weight target are considered.
| Club | Standard Tip Trim | Build Note |
|---|---|---|
| Driver | No tip — straight in | Butt trim to final playing length |
| 3-Wood | 1" | Then butt trim to final playing length |
| 4-Wood | 1.25" | Then butt trim to final playing length |
| 5-Wood | 1.5" | Then butt trim to final playing length |
| 7-Wood | 2" | Then butt trim to final playing length |
| 9-Wood | 2" | Then butt trim to final playing length |
Professional installation recommended. Tip trimming a graphite shaft is permanent and changes its playing characteristics. A qualified builder should confirm the clubhead, adapter, insertion depth, desired playing length and swing-weight target before cutting.
Compatibility
Confirm the exact head or adapter specification before installation.
TD 2.0 uses a .335-inch parallel wood tip and is intended for compatible driver and fairway-wood heads or adapters. It is not a direct fit for .350-inch wood hosels, hybrid heads or iron heads. Adapter requirements vary by brand and model, and an adapter is not included unless the selected product option specifically says otherwise.
Frequently Asked Questions
What type of golfer is TD 2.0 designed for?
Its matched weight, flex and trajectory options provide fitting choices for a wide range of player types. The best match depends on speed, transition, release, strike pattern, desired flight and preferred feel.
Is TD 2.0 a driver shaft or a fairway-wood shaft?
Both. The .335-inch parallel tip is designed for compatible driver and fairway-wood heads or adapters. Follow the correct trimming specification for the club being built.
What weights and flexes can I order?
50g is available in R2, Regular and Stiff; 60g in Regular, Stiff and X-Stiff; and 70g in Stiff, X-Stiff and Tour X.
Are all TD 2.0 shafts 46 inches raw?
Yes. KBS lists each current 50g, 60g and 70g TD 2.0 configuration at a 46-inch raw length. The finished club will be shorter after proper trimming and assembly.
Does the driver require tip trimming?
KBS specifies no standard driver tip trim—install straight in, then butt trim for the finished playing length. Build requirements can change with special fitting goals, so confirm before cutting.
Will this fit my adjustable driver adapter?
It fits adapters designed for a .335-inch wood shaft, but adapters differ by manufacturer and club model. Confirm the exact adapter and insertion requirements before ordering or installation.
What is included?
This listing is for one uncut KBS TD 2.0 graphite shaft. A clubhead, grip, adapter, ferrule, trimming and installation are not included unless specifically shown in the selected option.
Need Help Choosing Your TD 2.0?
Tell Grater Golf your driver or fairway-wood model, current shaft, playing length, typical ball flight and what you want to improve. We’ll help you confirm weight, flex, tip compatibility and build requirements before you order.
Contact Grater GolfShaft only. Clubhead, grip, adapter, ferrule, trimming and installation are not included unless specifically selected. Published weight names are KBS model categories rather than guaranteed finished weights. Product appearance and availability can vary.
