Image performance
4,000 ANSI lumens with a durable laser light source and dedicated Golf mode
BENQ AH500ST 4000 Lumen Short Throw 1080P Laser Golf Simulator Projector
Regular price
$1,999.00
Sale price
$1,999.00
Regular price
Unit price
Sale
Estimated Handling Time
2-3 days
Carrier transit time begins after your order ships.
BENQ AH500ST 4000 Lumen Short Throw 1080P Laser Golf Simulator Projector
Regular price
$1,999.00
Sale price
$1,999.00
Regular price
Unit price
Overview
Shipping and Returns
Purpose-built short-throw laser projector for golf simulator bays
BenQ Golf Simulator ProjectorBENQ AH500ST 4000 Lumen Short Throw 1080P Laser Golf Simulator Projector
The BenQ AH500ST is a purpose-built short-throw laser projector for golf simulator bays. It combines 4,000 ansi lumens, 1080p Full HD (1920 Γ 1080); accepts signals up to 4K UHD, and a 0.499:1 fixed lens configuration for a detailed indoor-golf image.
Official specificationsModel details verified against BenQ U.S.
Room-fit guidanceThrow ratio, aspect ratio and clearances considered
Grater Golf supportHelp matching the complete simulator display
Why it fits
Projector details explained for a real simulator room.
Installation design
0.499 fixed throw ratio designed to fill an impact screen from close range
Simulator-ready features
Quick Focus and flexible screen-fill modes for common simulator aspect ratios
Technical specifications
Compare the model to your screen and room.
| Model | AH500ST |
|---|---|
| Condition | New |
| Projection system | DLP |
| Native resolution | 1080p Full HD (1920 Γ 1080); accepts signals up to 4K UHD |
| Brightness | 4,000 ANSI lumens |
| Contrast ratio | 3,000,000:1 FOFO |
| Aspect ratio | 16:9 native; screen-fill modes for 16:9, 16:10, 4:3 and 1:1 |
| Throw ratio | 0.499:1 fixed |
| Zoom | Fixed lens |
| Light source | Laser; 20,000 hours normal and up to 38,000 hours Eco |
| Color coverage | 83% Rec. 709 |
| Lens shift / offset | No lens shift listed; 112% projection offset |
| Keystone | 2D vertical and horizontal keystone Β±30Β° |
| Connectivity | 2 Γ HDMI 2.0a, LAN, USB-A, USB Mini-B and RS-232 |
| Integrated audio | 10W speaker and 3.5mm audio out |

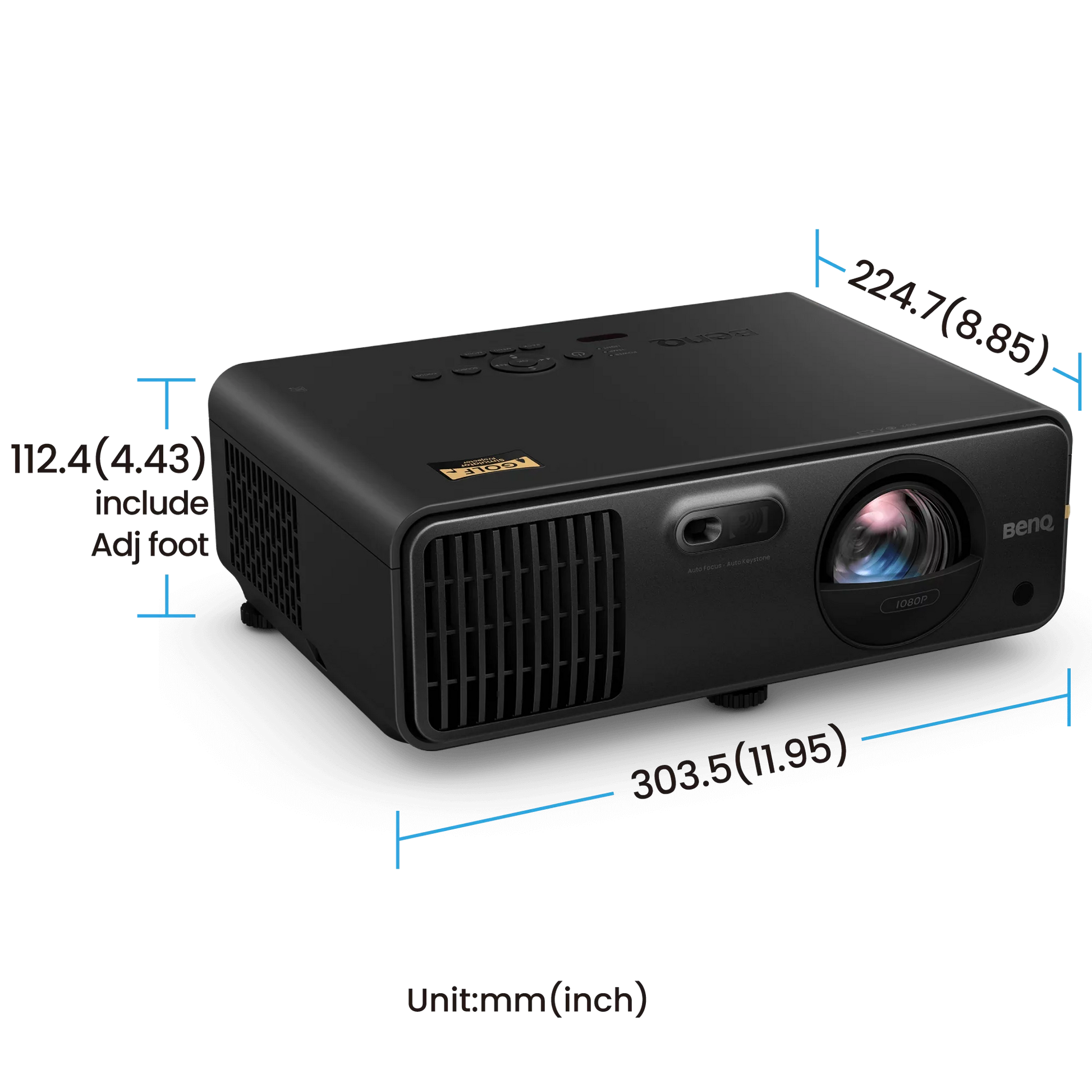

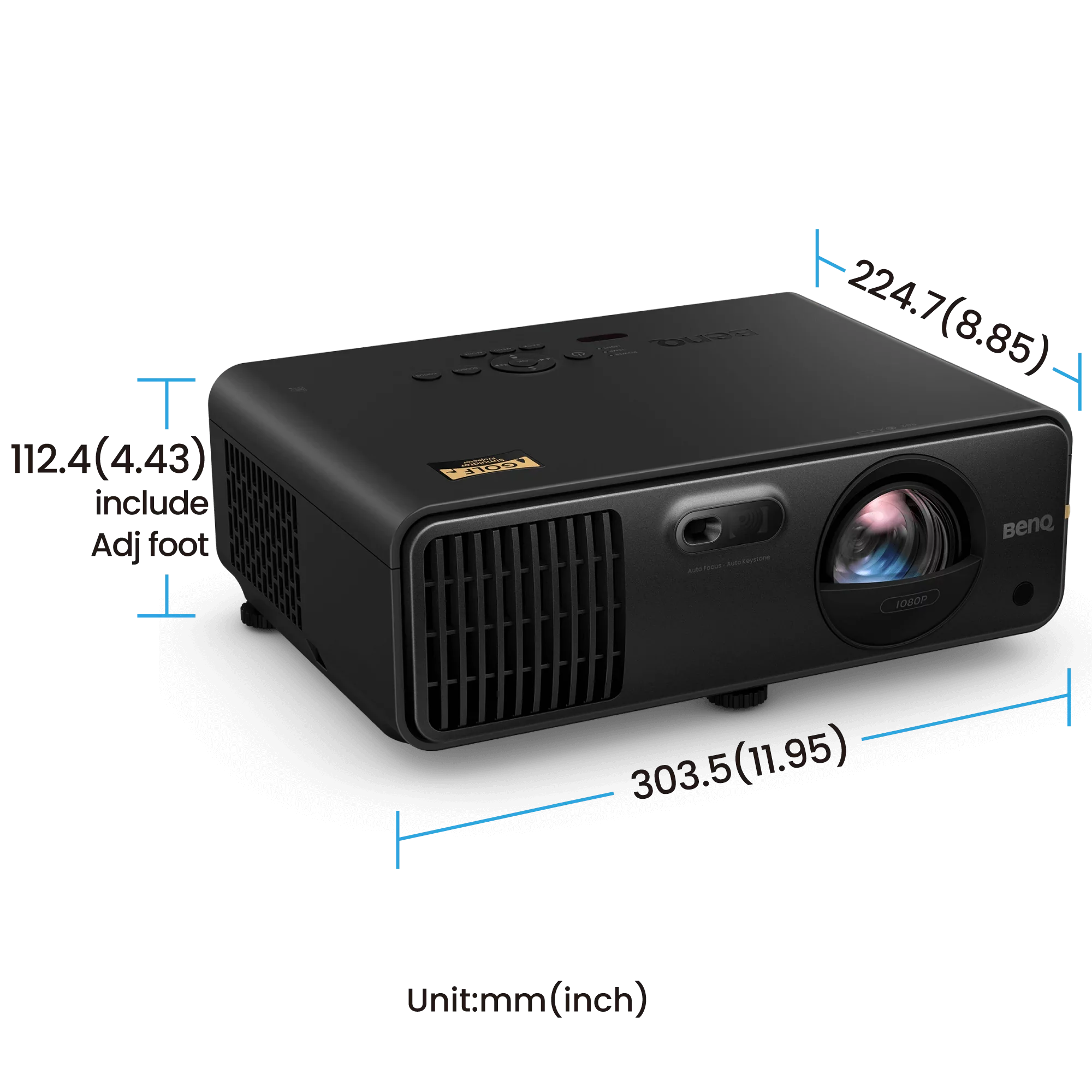

| Dimensions (W Γ H Γ D) | 12.60 Γ 5.14 Γ 10.04 in. |
| Net weight | 11.2 lb |
| Input lag | 16.7 ms at 1080p/120Hz; 33.4 ms at 1080p/60Hz |
Installation planning
Throw ratio equals projector-to-screen distance divided by visible image width. Use 0.499:1 fixed as the starting range, then verify the actual screen width, aspect ratio, lens offset, enclosure depth, ceiling height, player position and launch-monitor clearances before drilling or ordering a mount.
Important model note
Native output is 1080p even though the projector accepts signals up to 4K UHD. Its fixed lens makes exact screen dimensions and mount position especially important.
Plan before mounting: Published throw ratios are a starting point. Final geometry depends on the visible screen dimensions, selected aspect ratio, mounting position, signal resolution and any digital correction.
Product questions
Frequently asked questions
How do I confirm projector placement?
Send Grater Golf the visible screen width and height, desired aspect ratio, room depth, ceiling height and preferred mount position. We can check the starting geometry before installation.
Are the mount, cables and simulator computer included?
Only items explicitly shown in the selected Shopify configuration are included. Projector mounts, long-run signal cables and simulator computers are commonly separate.
Can Grater Golf help match this projector to my bay?
Yes. Share your room dimensions, visible screen dimensions, enclosure depth, launch monitor, computer output and mounting area for a compatibility review.
Grater Golf support
Build the image around your actual room.
We can help confirm aspect ratio, image size, approximate mounting distance, clearance and connection needs before you order.
