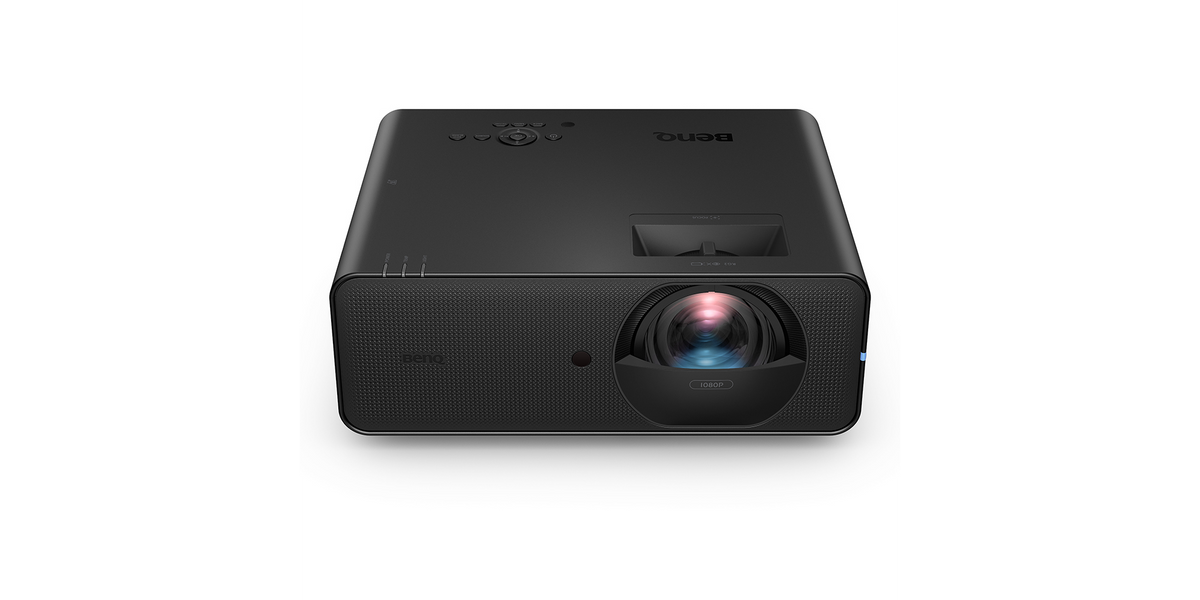

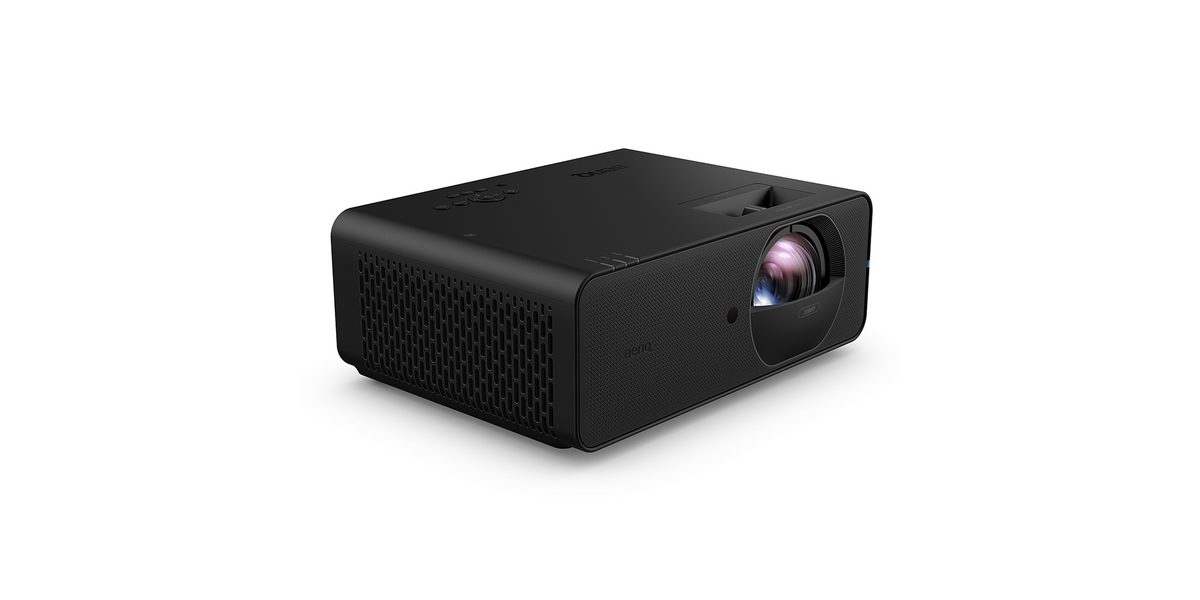

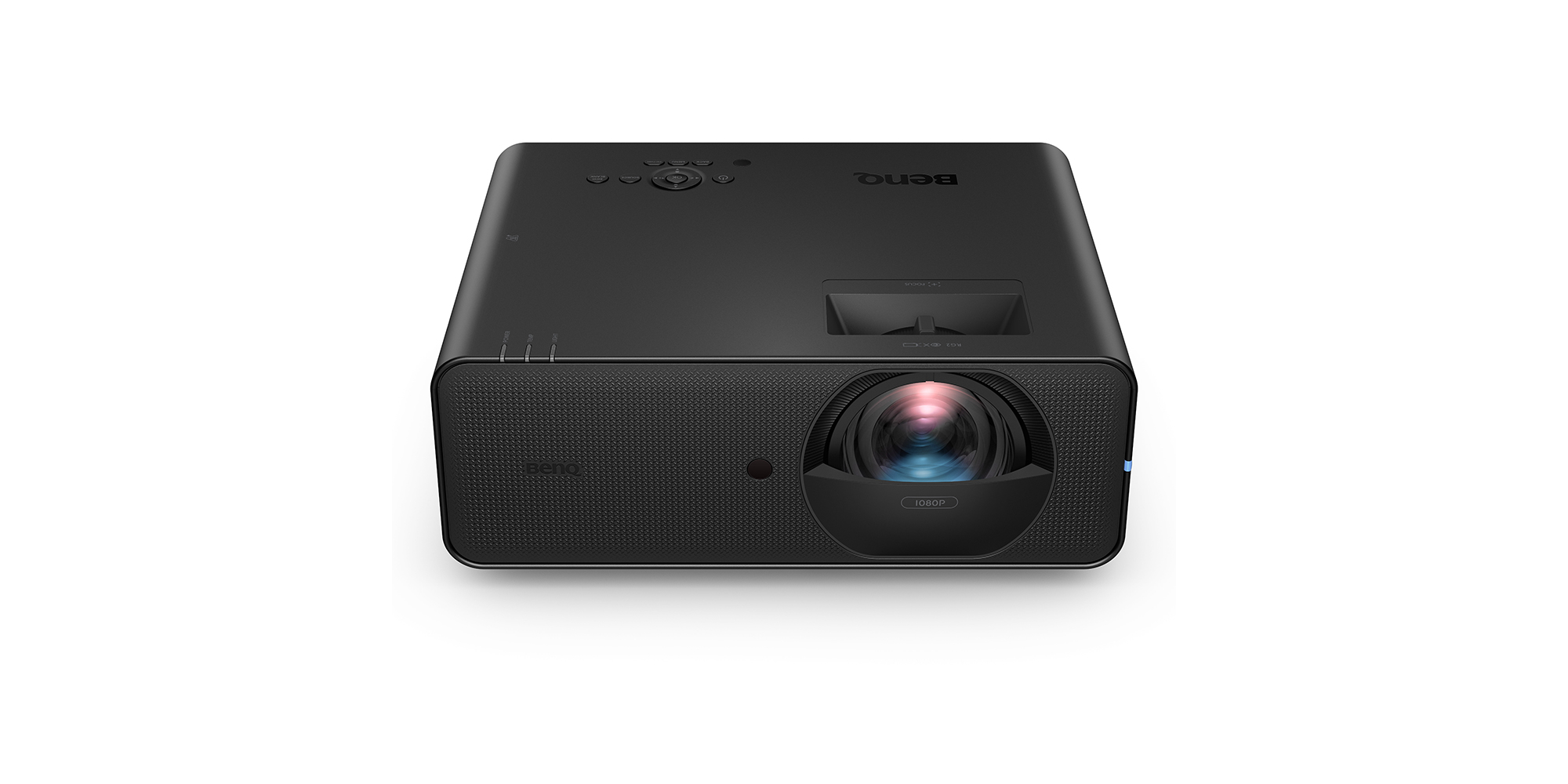

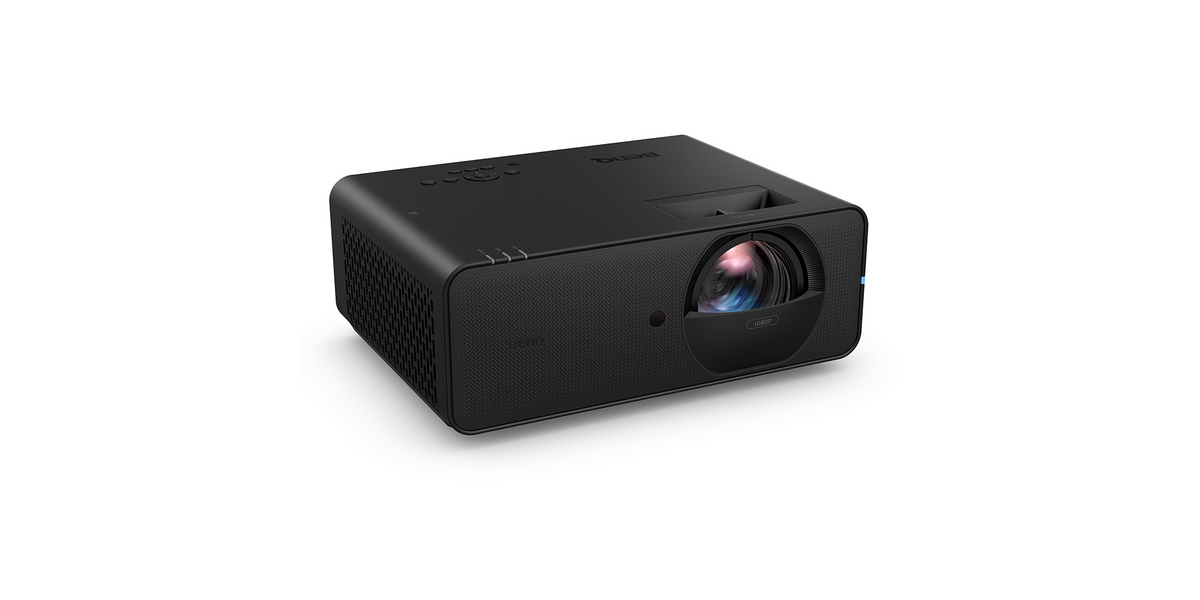

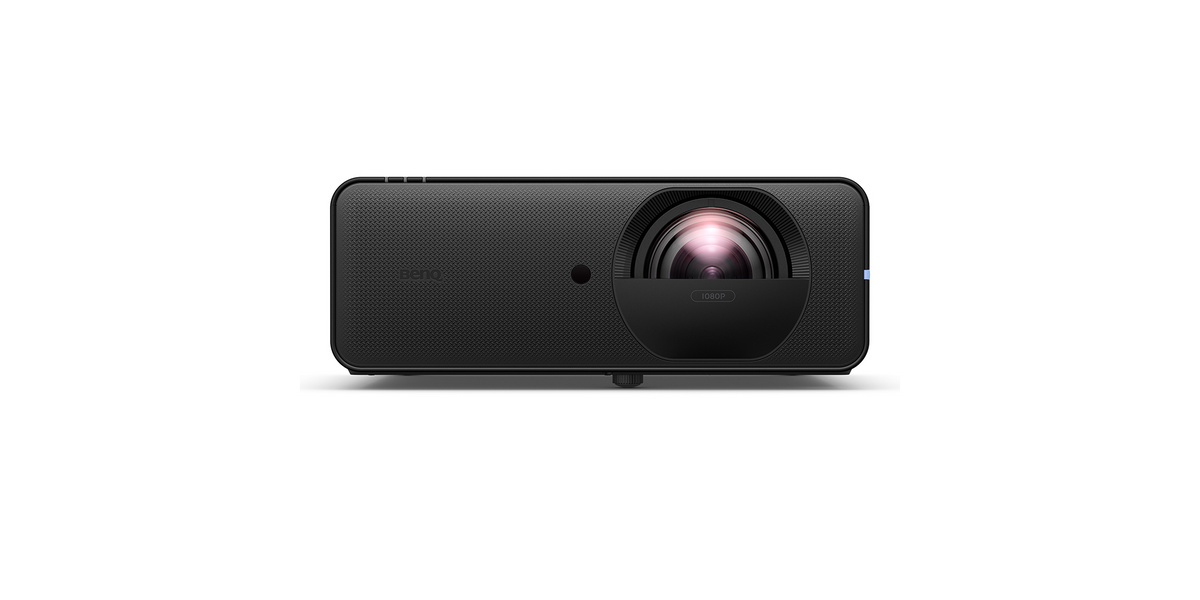

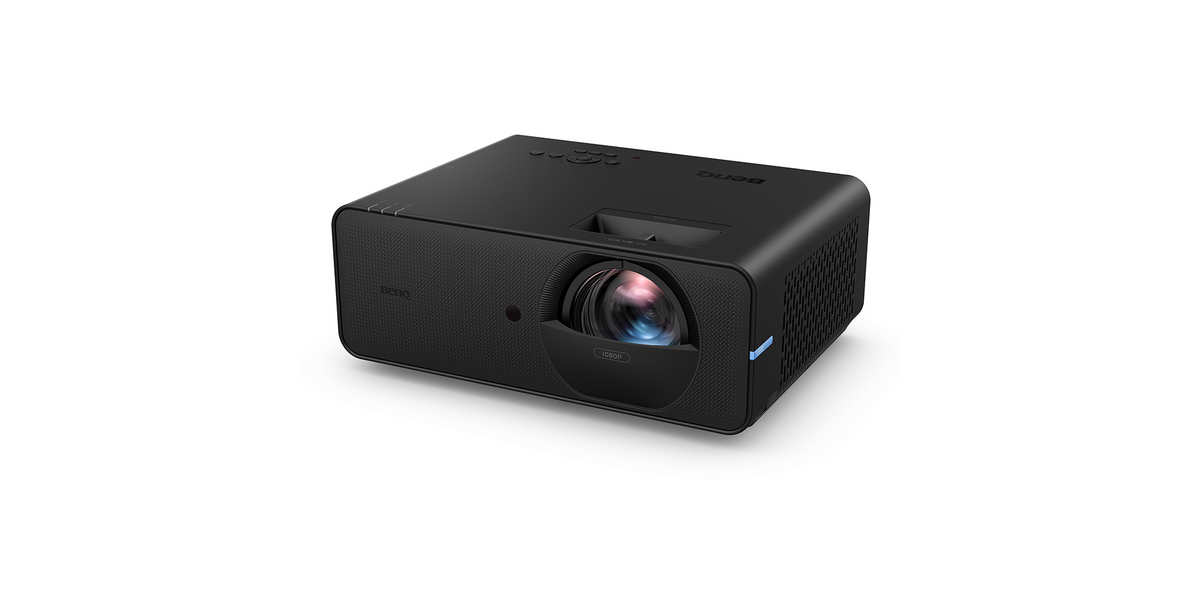

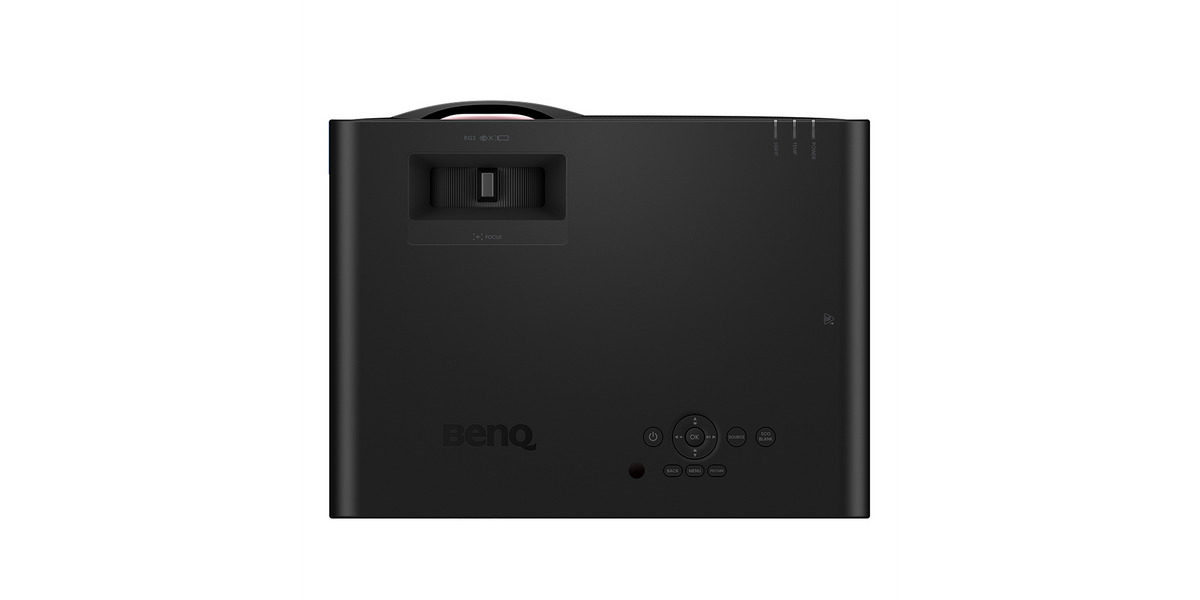

BenQ LH860ST 5000 Lumen 1080P Short Throw Laser Golf Simulator Projector
Regular price
$2,399.00
Sale price
$2,399.00
Regular price
Unit price
Sale
Estimated Handling Time
1-3 Days, Shipping free at $100
Carrier transit time begins after your order ships.
BenQ LH860ST 5000 Lumen 1080P Short Throw Laser Golf Simulator Projector
Regular price
$2,399.00
Sale price
$2,399.00
Regular price
Unit price
Overview
Shipping and Returns
BenQ LH860ST | Brilliant clarity in the smallest space
BenQ Β· Golf Simulator ProjectorsBenQ LH860ST 5000 Lumen 1080P Short Throw Laser Golf Simulator Projector
The LH860ST puts 5000 ANSI lumens of laser brightness behind a 0.5 short-throw lens, so it fills even a 200" impact screen from a short distance in garages, basements and man caves without player shadows. Screen Fill switches natively between 1:1, 5:4, 4:3, 16:10, 16:9 and 21:9 screens with one press, 93% Rec. 709 color keeps turf and sky natural, and an IP6X sealed laser engine runs from 32 to 104Β°F with no filter changes for 20,000 to 30,000 hours.
BenQBuilt for golf simulators, ready for movies and gaming
Real product detailsSpecs from BenQ's official product pages
Grater Golf supportProjector fitting help
Why golfers choose it
5000 Lumens, and more.
0.5 Throw Ratio
Fits small spaces and floor-mounted setups.
Screen Fill
Native 1:1, 5:4, 4:3, 16:10, 16:9 and 21:9 output.
Product details
Specs at a glance
| Brand | BenQ |
|---|---|
| Model | LH860ST |
| Resolution | 1080P (1920x1080) |
| Brightness | 5000 ANSI lumens |
| Contrast | 3,000,000:1 |
| Color | 93% Rec. 709, 30-bit |
| Light source | Laser, 20,000 hrs (30,000 Eco) |
| Throw ratio | 0.5 (fixed lens) |
| Offset | 105% |
| Keystone | 2D, Β±30Β° |
| Screen Fill | 16:9, 16:10, 4:3, 1:1, 21:9, 5:4 |
| Input lag | 6 ms (1080P 240Hz), 16.7 ms (1080P 60Hz) |

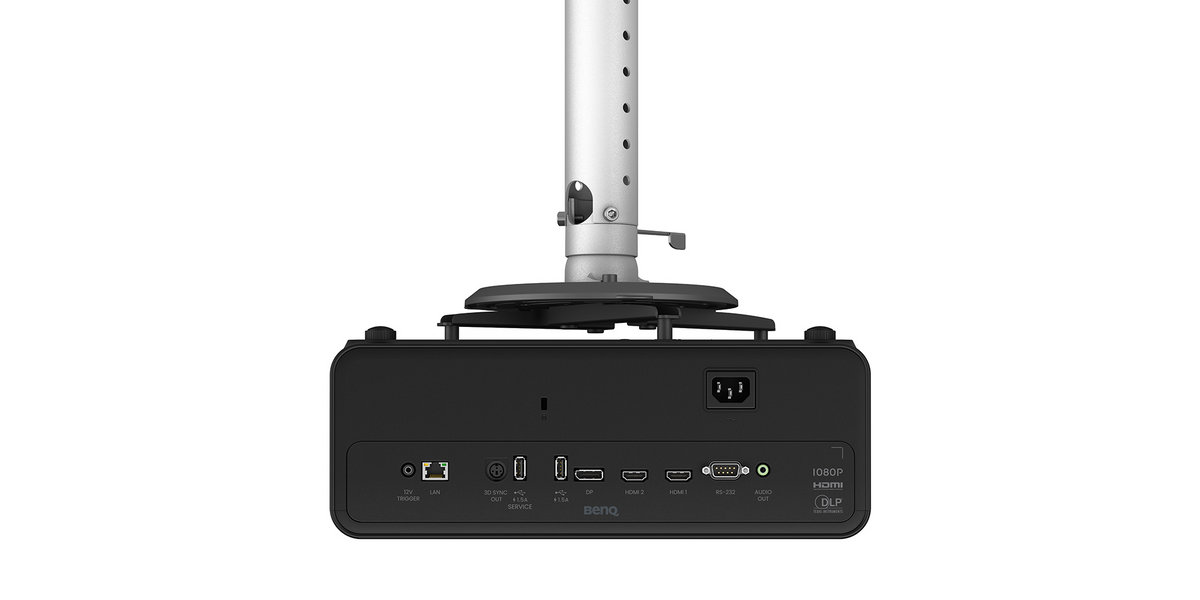

| Inputs | 2 x HDMI 2.0b, DisplayPort, LAN, 2 x USB-A, RS232, 12V trigger |
| Audio | 10W speaker, 3.5mm out |
| Power | 281 W typical |
| Noise | 36 / 31 dB |
| Dimensions | 13.54 x 5.35 x 10.45 in |
| Weight | 11.46 lb |

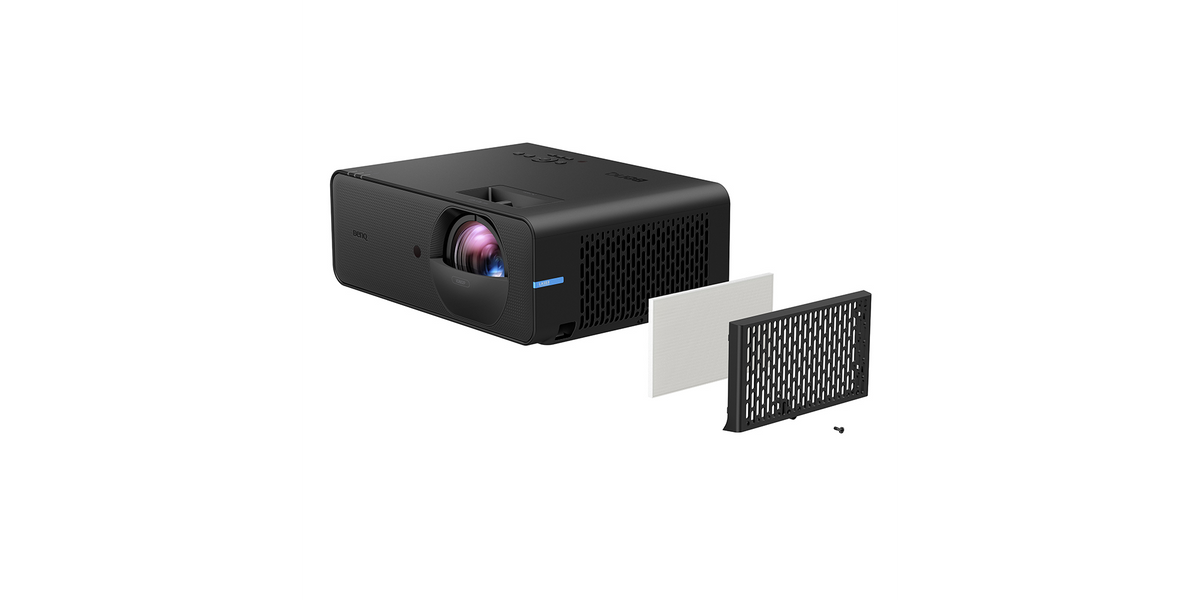

| Optional | Anti-dust filter, CM00G3 ceiling mount |
| Warranty | 3-year limited |
Key features
- 1080P Full HD, 5000 ANSI lumens
- 0.5 short-throw lens for small rooms
- Screen Fill including 21:9 ultrawide
- 93% Rec. 709 color
- Low input lag: 6 ms at 1080P 240Hz
- IP6X sealed laser, 20,000 to 30,000 hrs
- DisplayPort, LAN and 12V trigger
Who it suits
For compact rooms with large screens that need maximum brightness from a short distance.
Product questions
Frequently asked questions
Can it be floor mounted?
Yes. The 0.5 throw ratio makes the LH860ST ideal for floor-mounted enclosures as well as ceiling mounts.
Does it work with my launch monitor and software?
Yes. It connects by HDMI to the PC or device running your simulator software (GSPro, E6 Connect, TGC 2019, Awesome Golf and others) and works with any launch monitor that feeds that software.
What warranty is included?
BenQ includes a 3-year limited warranty from the date of purchase (accessories and mounts excluded).

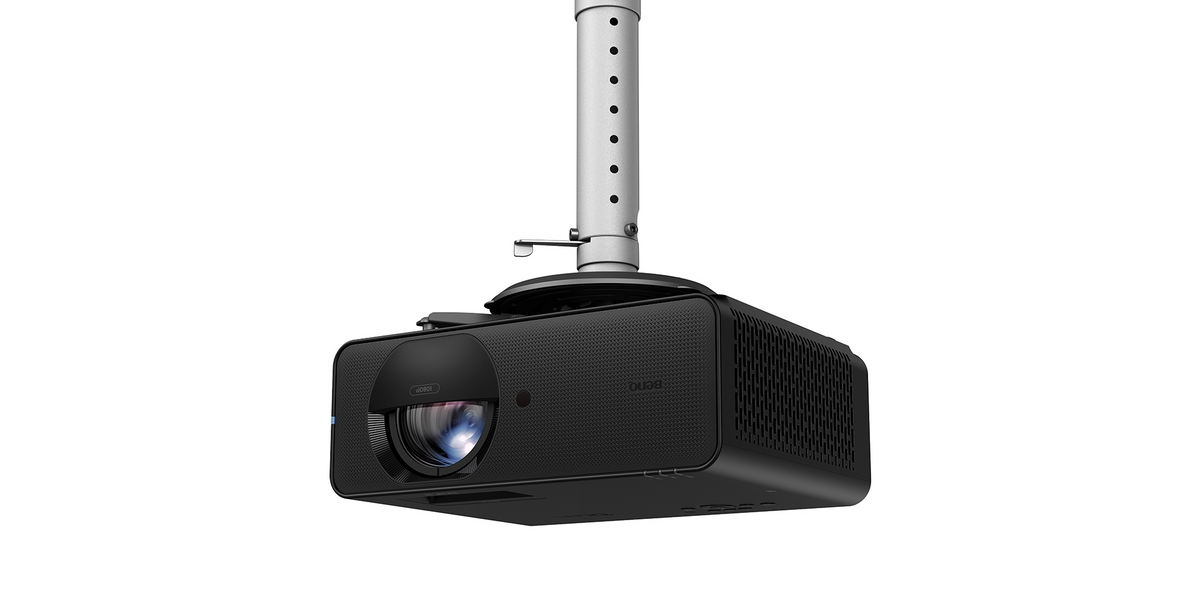

Is a ceiling mount included?
No. The BenQ CM00G3 universal ceiling mount or any compatible projector mount is sold separately. Floor-mount enclosures also work well with short-throw models.
