Into the Zone
The Tour AD IZ Hybrid is designed and manufactured at Graphite Design’s factory headquarters in Japan. Its four weight categories provide distinct stiffness and ball-flight characteristics for a variety of hybrid and driving-iron applications.
Premium aerospace-quality carbon-fiber materials and Graphite Design’s Material Stiffness Integration philosophy deliver the smooth feel, stability and control associated with the Tour AD family.
Easier Launch
The lighter 65- and 75-gram profiles combine a medium handle with a firm midsection and firm tip to promote a mid-high trajectory with controlled spin.
Mid-High Launch · Low-Mid Spin
Added Stability
The heavier 85- and 95-gram profiles use a firm handle, firm midsection and stiff tip to produce a lower, more controlled flight with reduced spin.
Mid Launch · Low Spin
Each weight family provides a distinct combination of feel, launch and spin.
Aerospace-quality carbon fiber supports the smooth, responsive sensation expected from Tour AD.
The .370" parallel-tip design can support compatible hybrids and driving-iron builds.
Designed to support consistent delivery, controlled flight and dependable distance.
Graphite Design’s proprietary Material Stiffness Integration design philosophy strategically combines carbon-fiber materials and stiffness properties throughout the shaft.
The resulting profiles are engineered to balance stability, feel and performance instead of relying on one uniform stiffness characteristic.

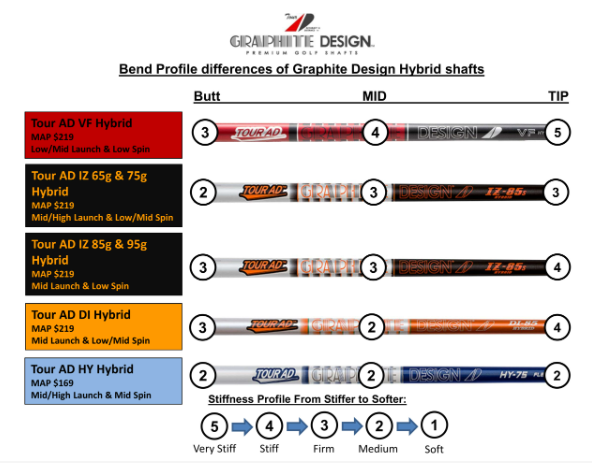

Compare the Tour AD IZ Hybrid’s stiffness characteristics with other Graphite Design hybrid profiles.
Graphite Design bases its general flex recommendations on driver swing speed. Shaft weight availability differs by flex, and tempo, transition, release and desired ball flight should also be considered.
| Driver Swing Speed | Suggested Flex | Available IZ Hybrid Models |
|---|---|---|
| 71–85 mph | R2 / Lite | 65 R2 |
| 86–95 mph | R1 / Regular | 65 R1; 75 R; 85 R |
| 96–105 mph | Stiff | 75 S; 85 S; 95 S |
| 105+ mph | X-Stiff | 85 X; 95 X |
Official specifications for all available IZ Hybrid weight and flex combinations.
| Model | Part Number | Flex | Length | Weight | Tip OD | Parallel Tip | Butt OD | Torque | Kick Point | Launch | Spin |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IZ Hybrid 65 R2 | ADIZHB65-R2 | R2 / Lite | 42" | 65g | .370" | 3.0" | .600" | 3.5° | Low/Mid | Mid/High | Mid |
| IZ Hybrid 65 R1 | ADIZHB65-R1 | R1 / Regular | 42" | 65g | .370" | 3.0" | .600" | 3.5° | Low/Mid | Mid/High | Mid |
| IZ Hybrid 75 R | ADIZHB75-R | Regular | 42" | 76g | .370" | 3.0" | .598" | 3.1° | Low/Mid | Mid/High | Mid |
| IZ Hybrid 75 S | ADIZHB75-S | Stiff | 42" | 78g | .370" | 3.0" | .598" | 3.1° | Mid | Mid | Mid |
| IZ Hybrid 85 R | ADIZHB85-R | Regular | 42" | 84g | .370" | 3.0" | .602" | 2.4° | Mid | Mid | Low |
| IZ Hybrid 85 S | ADIZHB85-S | Stiff | 42" | 86g | .370" | 3.0" | .602" | 2.4° | Mid/High | Low/Mid | Low |
| IZ Hybrid 85 X | ADIZHB85-X | X-Stiff | 42" | 88g | .370" | 3.0" | .602" | 2.4° | Mid/High | Low/Mid | Low |
| IZ Hybrid 95 S | ADIZHB95-S | Stiff | 42" | 96g | .370" | 3.0" | .598" | 2.1° | Mid/High | Low/Mid | Low |
| IZ Hybrid 95 X | ADIZHB95-X | X-Stiff | 42" | 97g | .370" | 3.0" | .598" | 2.1° | Mid/High | Low/Mid | Low |
These are Graphite Design’s standard recommendations. The final build may require adjustment based on bore depth, clubhead design and fitting requirements.
| 15°–18° | 19°–22° | 23°–26° | 27°+ |
|---|---|---|---|
| 0" | 0.5" | 1.0" | 1.0" |
Always leave at least 0.5" of parallel tip section above the hosel. Improper trimming or installation may damage the shaft and void the manufacturer’s warranty.
The IZ 65/75 and IZ 85/95 families have meaningfully different stiffness and flight characteristics. Shaft weight, flex, trimming, finished length and installation should be matched to your swing and clubhead. Contact Grater Golf for help selecting a shaft or configuring a custom hybrid or driving-iron build.
Shaft only unless a custom build is selected. Clubhead, adapter and grip are not included unless specifically shown as part of the selected configuration. Manufacturer specifications may vary slightly due to normal production tolerances.
