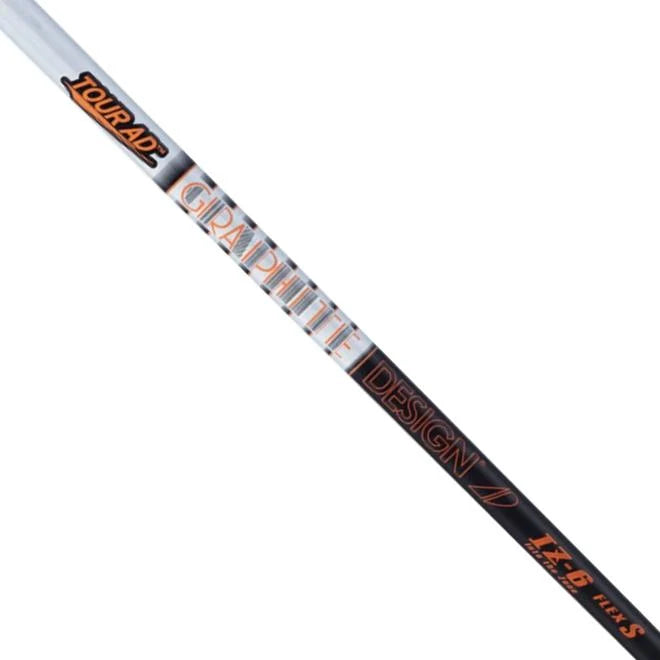

Graphite Design Tour AD IZ Wood Shaft
Graphite Design Tour AD IZ Wood Shaft
Graphite Design Tour AD
Tour AD IZ Wood Shaft
Step “Into the Zone” with the Graphite Design Tour AD IZ. Designed and manufactured in Japan, this premium wood shaft combines a stable feel with a profile engineered to promote high launch and controlled spin.
High Launch
Designed to help golfers produce a strong, elevated trajectory from the driver or fairway woods.
Controlled Spin
A stable design helps manage spin while supporting consistent distance and dispersion.
Premium Materials
Constructed with aerospace-quality carbon fiber and advanced material technology.
Made in Japan
Manufactured in Japan under Graphite Design’s exacting quality standards.
Performance Profile
The Tour AD IZ features a profile intended to produce a stable, responsive sensation through the swing. The IZ-5 through IZ-8 models use a firm handle section, medium center section and firm-plus tip section. The lighter IZ-4 features a medium handle and center section with a softer tip.
Advanced Material Technology
TORAYCA T1100G
High-modulus TORAYCA T1100G carbon fiber, combined with NANALLOY technology, is incorporated into the tip section to support stability without sacrificing feel.
Premium Carbon Fiber
Premium aerospace-quality 50-ton carbon fiber materials help provide the strength, consistency and responsive performance expected from the Tour AD family.
Who Is the Tour AD IZ For?
Consider the Tour AD IZ if you want a premium shaft that can help produce a higher launch while maintaining stability and controlled spin.
- Golfers seeking a high-launch wood shaft
- Players who prefer a stable handle and tip sensation
- Golfers looking for controlled spin and consistent dispersion
- Players who want multiple weight and flex choices for a more precise fitting
General Flex Selection Guide
Use this chart as a starting point based on driver swing speed. Tempo, transition, release pattern and desired ball flight should also be considered.
| Driver Swing Speed | Suggested Flex |
|---|---|
| 71–85 mph | R2 / Lite-Senior |
| 86–95 mph | R1 / Regular |
| 92–98 mph | SR / Stiff Regular |
| 96–105 mph | S / Stiff |
| 105–109 mph | X / X-Stiff |
| 110+ mph | TX / Tour X-Stiff |
Tour AD IZ Specifications
| Model | Flex | Length | Weight | Tip | Parallel Tip | Butt | Torque | Kick Point | Launch | Spin |
|---|---|---|---|---|---|---|---|---|---|---|
| IZ-4 R2 | Lite/Senior | 46" | 47g | .335" | 3.0" | .590" | 5.6° | Mid | High | Low-Mid |
| IZ-4 R1 | Regular | 46" | 47g | .335" | 3.0" | .590" | 5.6° | Mid | High | Low-Mid |
| IZ-4 S | Stiff | 46" | 48g | .335" | 3.0" | .592" | 5.6° | Mid | High | Low-Mid |
| IZ-5 R2 | Lite/Senior | 46" | 53g | .335" | 3.0" | .594" | 4.5° | Mid | High | Low-Mid |
| IZ-5 R1 | Regular | 46" | 54g | .335" | 3.0" | .596" | 4.5° | Mid | High | Low-Mid |
| IZ-5 S | Stiff | 46" | 56g | .335" | 3.0" | .598" | 4.4° | Mid | High | Low-Mid |
| IZ-5 X | X-Stiff | 46" | 58g | .335" | 3.0" | .600" | 4.4° | Mid | High | Low-Mid |
| IZ-6 SR | Stiff Regular | 46" | 62g | .335" | 3.0" | .596" | 3.2° | Mid | High | Low-Mid |
| IZ-6 S | Stiff | 46" | 64g | .335" | 3.0" | .598" | 3.2° | Mid | High | Low-Mid |
| IZ-6 X | X-Stiff | 46" | 65g | .335" | 3.0" | .600" | 3.2° | Mid | High | Low-Mid |
| IZ-6 TX | Tour X-Stiff | 46" | 66g | .335" | 3.0" | .602" | 3.2° | Mid | High | Low-Mid |
| IZ-7 S | Stiff | 46" | 73g | .335" | 3.0" | .598" | 3.1° | Mid | High | Low-Mid |
| IZ-7 X | X-Stiff | 46" | 74g | .335" | 3.0" | .600" | 3.1° | Mid | High | Low-Mid |
| IZ-7 TX | Tour X-Stiff | 46" | 76g | .335" | 3.0" | .602" | 3.0° | Mid | High | Low-Mid |
| IZ-8 S | Stiff | 46" | 82g | .335" | 3.0" | .604" | 2.9° | Mid | High | Low-Mid |
| IZ-8 X | X-Stiff | 46" | 84g | .335" | 3.0" | .608" | 2.9° | Mid | High | Low-Mid |
Standard Bore Tip-Trimming Guide
| Driver | 3-Wood | 5-Wood | 7-Wood | 9-Wood |
|---|---|---|---|---|
| 0" | 0.5" | 1.0" | 1.0" | 1.0" |
Trimming recommendations apply to standard-bore installations. Always leave at least 0.5" of parallel tip section above the clubhead hosel.
Professional Installation Recommended
Final shaft selection, tipping and playing length can affect launch, spin, feel and flex. Professional fitting and installation are recommended. Contact Grater Golf for help choosing the appropriate model or completing your custom club build.
Shaft only unless otherwise specified. Clubhead, adapter and grip are not included unless selected as part of an available custom-build option.
