Grater Golf Albatross Golf Simulator Enclosure with Preferred Impact Screen
Grater Golf Albatross Golf Simulator Enclosure with Preferred Impact Screen
Grater Golf Simulator Enclosure
Grater Golf Albatross Golf Sim Bay

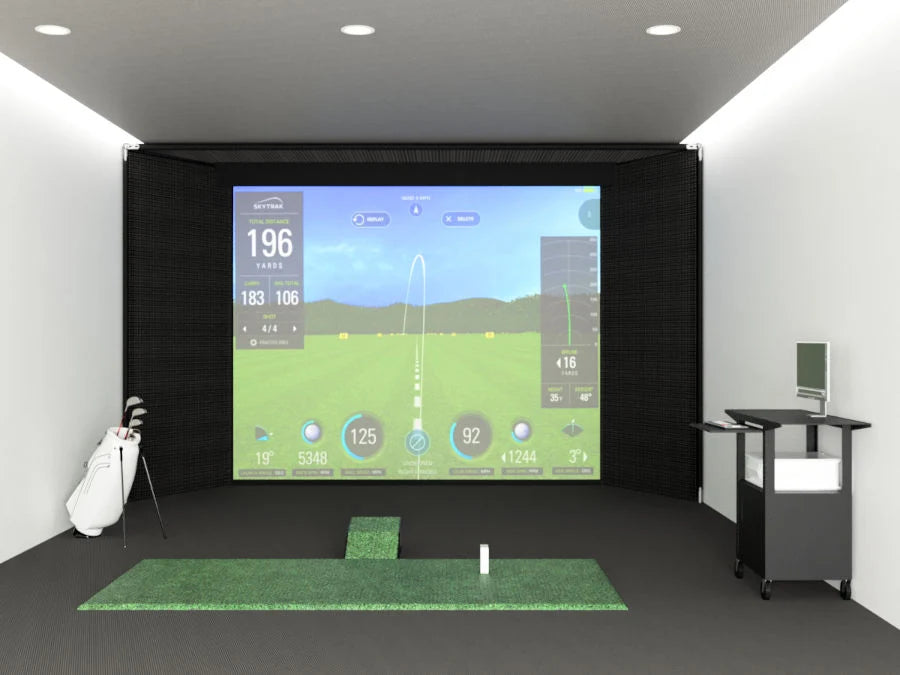

A commercial-style, wall-to-wall simulator enclosure featuring a Preferred Impact Screen, layered ball protection and a clean built-in appearance.
Transform Your Room into a Dedicated Golf Studio
The Grater Golf Albatross Golf Sim Bay is designed to fill the width of your simulator room, creating a clean and professional installation without the open gaps commonly found around traditional freestanding enclosures. Its centered impact-screen viewport, angled interior netting and blackout fabric surround create an immersive environment for home, commercial and teaching applications.
Wall-to-Wall Design
Built to fill the width of the room and create the appearance of a dedicated simulator studio.
Preferred Impact Screen
Provides the projection and hitting surface at the center of the Albatross enclosure.
Layered Ball Protection
Angled side netting, a rear baffle and a protective screen-pole valance help contain errant shots.
Rigid Top Structure
Rigid steel-channel support across critical spans helps reduce sagging on wider installations.
More Than a Traditional Simulator Cage
The Albatross is designed to look like an integrated simulator room rather than a cage placed in the middle of a larger space. The enclosure extends beyond the impact-screen opening, while blackout side shades and angled interior netting transition inward toward the centered projection area. This creates a finished, theater-like appearance while improving left-to-right shot protection.
What the Albatross Bay Includes
The enclosure package includes the screen, fabric, protective netting and connection hardware required for the selected bay configuration.
Screen and Fabric
- Grater Golf Preferred Impact Screen
- Blackout top panel
- Blackout side panels and shades
- Overlapping fabric construction
- Integrated frame sleeves
Ball Protection
- Baffle net positioned behind the impact screen
- Angled interior side netting
- Protective screen-pole safety valance
- Impact screen extending beyond the visible viewport
- Layered left-to-right shot protection
Connection Hardware
- Steel connector kit for 1-inch EMT tubing
- Rigid-span brackets for the screen and front supports
- Hidden impact-screen bungee system
- Screen attachment components
- Connection hardware for the selected configuration
Purpose-Built Safety Features
Recessed Screen Position
The impact screen hangs approximately 12 inches forward of the back edge, helping keep rear structural components outside the direct hitting area.
Angled Side Protection
Interior netting angles inward toward the screen viewport to improve protection across the width of the room.
Screen-Pole Valance
A durable safety valance hangs approximately six inches in front of the screen support to reduce direct ball contact with the structure.
Rear Baffle Net
An additional baffle behind the impact screen helps manage screen movement and provides another protective layer.
Hidden Tensioning
The concealed bungee system helps maintain a flatter screen while keeping tensioning hardware away from the hitting area.
Rigid Wide-Span Support
Steel-channel support is used across critical upper spans to improve rigidity in wider simulator-bay configurations.
Available Albatross Bay Sizes
Choose between 5-foot and 8-foot depth options. The recommended projection format depends on the selected overall bay size.
| Overall Bay Size | Available Depth | Projection Format |
|---|---|---|
| 8'H Γ 12'W | 5'D or 8'D | 4:3 |
| 8.6'H Γ 14'W | 5'D or 8'D | 4:3 |
| 9'H Γ 16'W | 5'D or 8'D | 16:9 |
| 9'H Γ 18'W | 5'D or 8'D | 16:9 |
| 10'H Γ 20'W | 5'D or 8'D | 16:9 |
Measurements represent nominal enclosure dimensions. Confirm exact finished dimensions and allow sufficient installation tolerance before ordering.
Choose the Right Enclosure Depth
5-Foot Depth
A space-conscious configuration for rooms where overall depth is limited.
- Uses less room depth
- Suitable for carefully planned home installations
- Requires proper golfer-position and ceiling-protection planning
8-Foot Depth
Provides extended side and overhead coverage for larger rooms and commercial-style installations.
- Additional side containment
- More immersive enclosure appearance
- Recommended when room dimensions allow the additional depth
Rigid Support for Wide Simulator Bays
The Albatross uses rigid steel-channel support across critical screen and front spans, helping the enclosure remain straighter across wider room configurations.
Important: Frame Tubing and Steel Channel
The connector hardware is included, but 1-inch EMT tubing, steel channel and related structural materials are not included by default unless specifically selected as an option.
Structural materials may be added to the order when available or purchased locally to reduce oversized shipping costs. Review all selected product options before checkout.
Albatross Bay Installation Guide
Review the complete Grater Golf Albatross Golf Sim Bay installation guide before purchasing structural materials or beginning assembly.
View Installation GuideThe PDF will open in a new browser tab.
Plan Your Room Before Ordering
- Measure the roomβs finished width, height and usable depth.
- Allow installation tolerance around the selected nominal bay dimensions.
- Confirm that every intended golfer can swing safely without contacting walls, ceilings or fixtures.
- Plan the hitting position around the launch monitorβs required tracking area.
- Match the projectorβs aspect ratio and image size to the selected screen viewport.
- Account for the screen hanging approximately 12 inches forward of the rear enclosure edge.
- Plan electrical service, lighting, computer placement, projector mounting and cable routing before assembly.
Equipment Not Included
| Launch monitor | Not included |
| Projector and projector mount | Not included |
| Gaming computer and simulator software | Not included |
| Hitting mat, hitting strip and flooring | Not included |
| 1-inch EMT frame tubing | Not included unless selected |
| Rigid steel-channel material | Not included unless selected |
| Rear blackout panel | Optionalβnot included unless selected |
Ideal for Home and Commercial Simulator Rooms
- Dedicated home golf simulator rooms
- Golf teaching and fitting studios
- Commercial simulator facilities
- Golf courses and clubhouse installations
- Sports-training and entertainment spaces
- Rooms requiring wider left-to-right shot protection
Let Grater Golf Help Design Your Simulator
Choosing the correct bay size is only the beginning. Grater Golf can help coordinate your enclosure, launch monitor, projector, hitting surface, computer and accessories around your room and budget.
Contact Grater GolfProduct specifications, components and available options may change without notice. Images may show optional equipment, structural materials, flooring, electronics or accessories that are not included. Golf balls can cause serious injury or property damage. Always inspect the enclosure before use and ensure adequate room dimensions, assembly, screen clearance and golfer safety.
