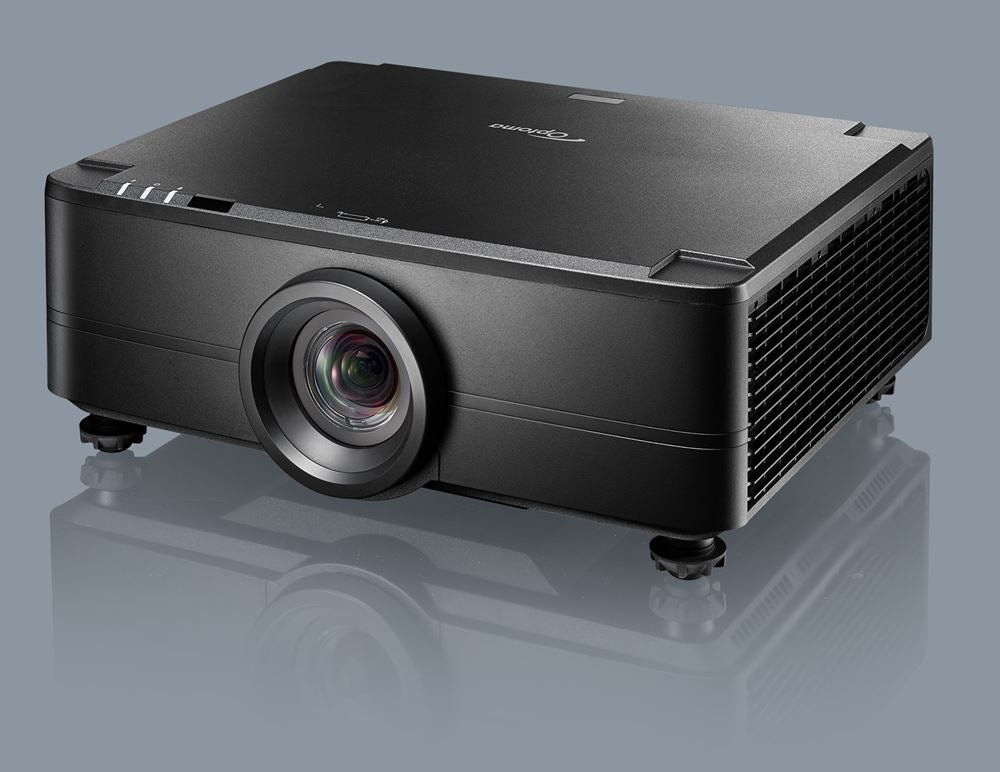

Optoma ZU820TST 8200 Lumen short throw laser projector
Optoma ZU820TST 8200 Lumen short throw laser projector
Professional Short-Throw Projection
Optoma ProScene ZU820TST 8,200-Lumen Short-Throw Laser Projector
Bring exceptional brightness, flexible placement and commercial-grade reliability to large golf simulators and immersive installations. The Optoma ZU820TST combines 8,200 lumens, a motorized short-throw lens, WUXGA resolution and 4K/HDR input compatibility with advanced professional installation controls.
Lumens of laser brightness
1920 × 1200 native resolution
Short-throw range
Hours of laser life
Large-Scale Simulator Performance
Exceptional Brightness for Immersive Golf
With 8,200 lumens of output, the ZU820TST is designed for large impact screens, brighter rooms and professional simulator installations. The 95% image-uniformity rating helps produce even brightness across expansive projected surfaces.
Its 0.75:1–0.95:1 short-throw lens helps place the projector closer to the impact screen, reducing shadows and creating more usable space around the golfer.
4K and HDR Compatible
Accepts compatible 4K and HDR signals while displaying content at its native WUXGA resolution.
Edge Blending and Warping
Integrated geometry controls support projection mapping, image warping and multi-projector edge-blended installations.
Four-Corner Correction
Individually adjust image corners to compensate for angled projector placement or uneven projection surfaces.
Dual 10W Speakers
Two integrated 10-watt speakers provide convenient sound without requiring a separate audio system.
Constant Brightness
Advanced light-sensing technology helps maintain a consistent selected brightness level throughout long-running installations.

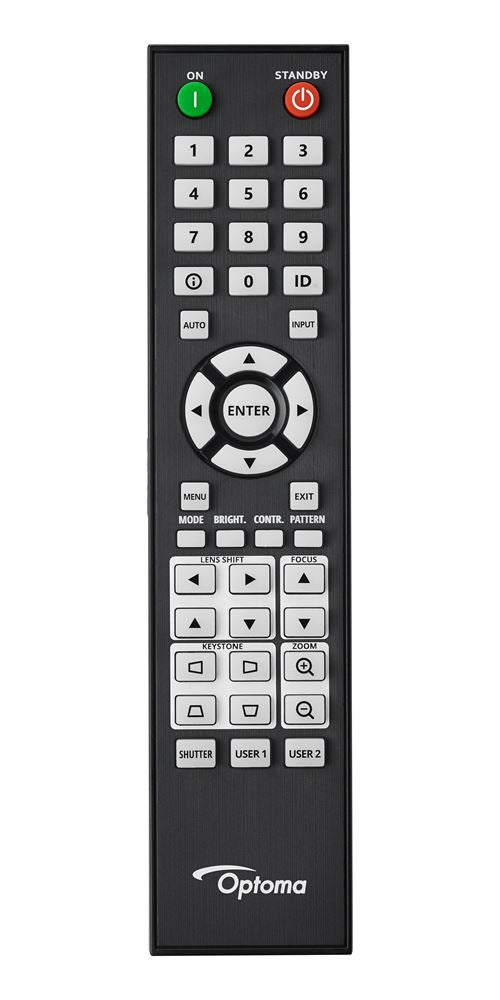

Remote Management

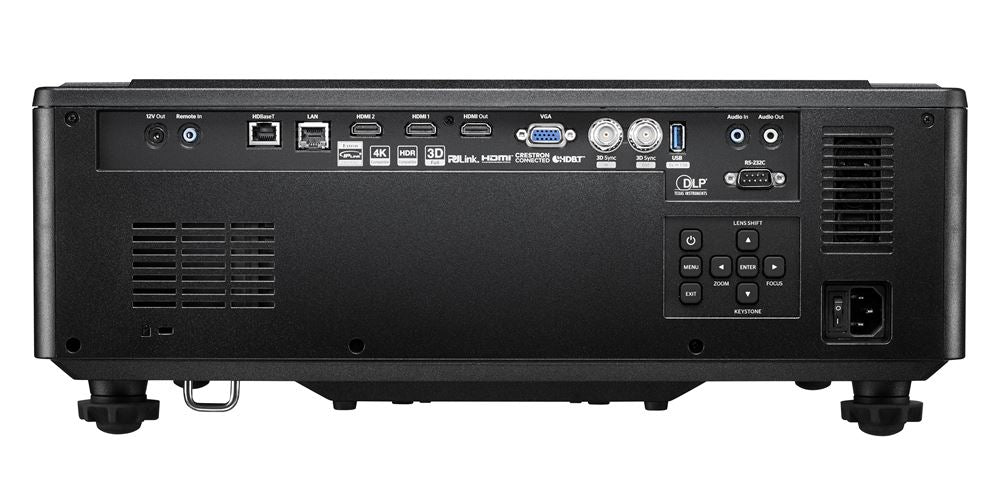

RJ45, RS232, wired remote and compatible network-management options help simplify professional system control.
Technical Specifications
| Display Technology | DLP |
|---|---|
| Native Resolution | WUXGA — 1920 × 1200 |
| Brightness | 8,200 lumens; 6,900 ANSI lumens |
| Contrast Ratio | 3,000,000:1 |
| Native Aspect Ratio | 16:10 |
| Compatible Aspect Ratios | 4:3, 16:9 and 16:10 |
| Throw Ratio | 0.75:1–0.95:1 |
| Projection Distance | 31.1″–244.49″ |
| Zoom | 1.26x motorized |
| Lens Shift | Vertical ±50%; horizontal ±15% |
| Laser Life | Up to 30,000 hours in Eco mode |
| Inputs | HDBaseT, HDMI 2.0, HDMI 1.4a, VGA, 3D Sync and 3.5mm audio |
| Outputs | HDMI 2.0, USB-A power, 3D Sync and 3.5mm audio |
| Noise Level | 34 dB minimum; 36 dB maximum |
| Speakers | 2 × 10 watts |
| Dimensions | 19.13″ × 15.53″ × 7.3″ |
| Net Weight | 27.78 lb. |
Resolution Information
The ZU820TST has a native WUXGA resolution of 1920 × 1200 and accepts compatible 4K and HDR input signals. It is not a native 4K UHD projector.
Professional Brightness for Serious Simulator Installations
With 8,200 lumens, a flexible motorized short-throw lens, advanced image alignment and commercial-grade reliability, the Optoma ZU820TST is built for large home golf simulators, commercial golf facilities and immersive multi-projector installations.
