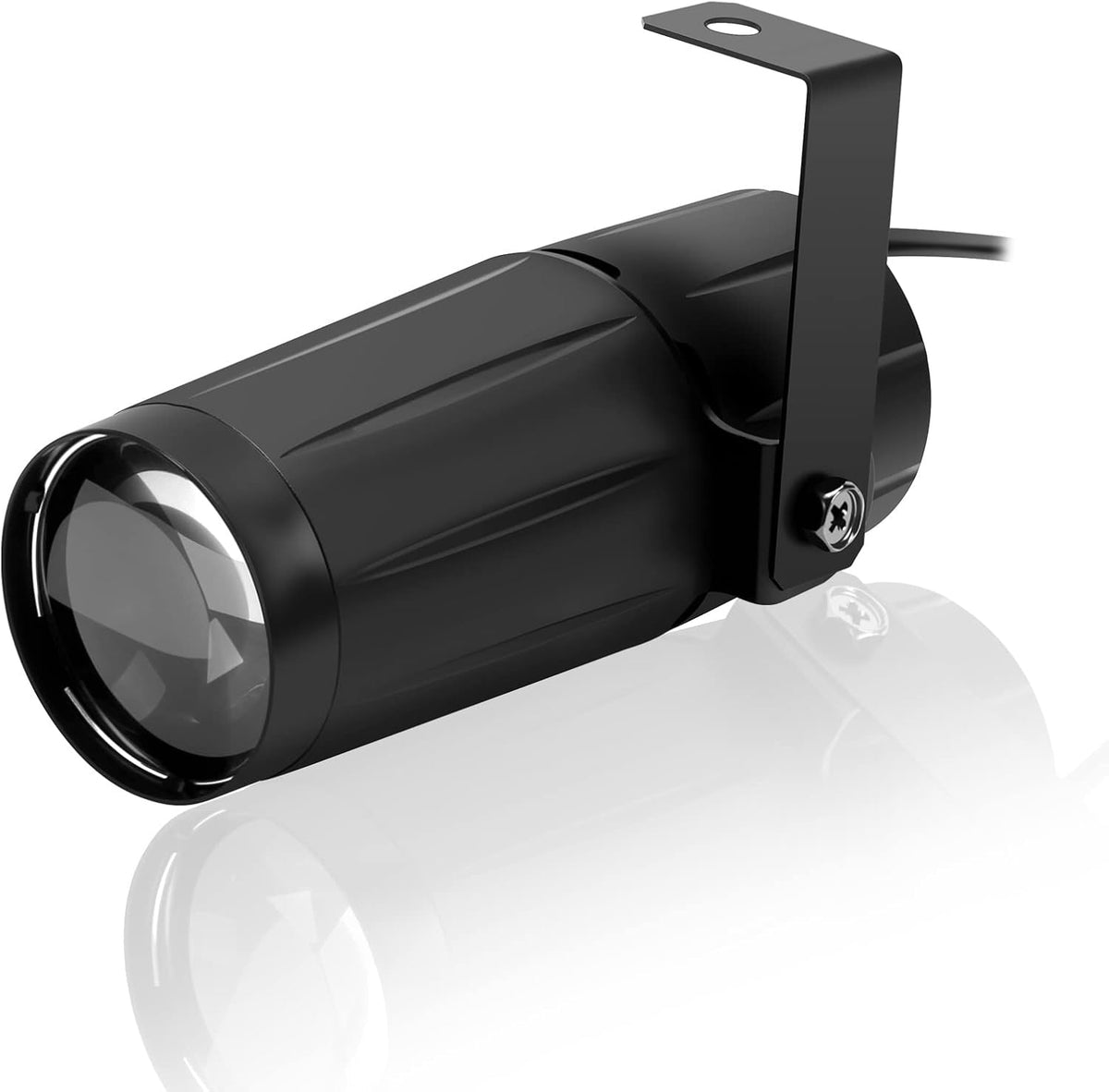

Pinspot Spotlight for Golf Simulator Hitting Areas
Clearly illuminate your golf ball and hitting surface without flooding the entire simulator room with light. This compact LED pinspot produces a focused white beam that helps improve visibility while preserving the dark, immersive atmosphere of your simulator.
Light the Ball Without Washing Out the Screen
Traditional room lighting can reduce contrast on a golf simulator impact screen. This pinspot uses a concentrated 12-degree beam to direct light toward the ball and hitting mat instead of illuminating the entire room. The result is improved visibility at address while helping your projected image remain bright and easy to see.
A Better Lighting Solution for Simulator Rooms
- Focused 12-degree beam pattern
- Bright 6000K cool-white light
- Approximately 300 lumens of output
- Energy-efficient 3-watt LED
- Adjustable mounting bracket
- Wall or ceiling mounting capability
- Compact and lightweight ABS housing
- Wide 90–240V input range
- Flicker-free light output
- Designed for indoor use
Product Specifications
| Light Type | LED pinspot spotlight |
|---|---|
| Light Color | Cool white |
| Color Temperature | 6000K |
| LED Power | 3 watts |
| Maximum Light Output | Approximately 300 lumens |
| Beam Angle | 12 degrees |
| Input Voltage | AC 90–240V |
| Rated LED Life | Up to 50,000 hours |
| Housing Material | ABS plastic |
| Mounting | Adjustable wall or ceiling bracket |
| Approximate Dimensions | 6.4 × 3 × 2.8 inches |
| Approximate Weight | 0.4 lb. |
| Power Source | Corded electric |
| Recommended Environment | Indoor use |
| Package Contents | One pinspot light with adjustable bracket |
Golf Simulator Installation Guidance
Mount the pinspot above the hitting area and aim the beam toward the ball and center of the hitting mat. Adjust its position to minimize player shadows and prevent direct light from reaching the impact screen, projector lens or the golfer’s eyes. Final coverage will vary based on ceiling height, mounting distance and ambient room lighting.
Mounting hardware and installation requirements may vary by room. Always secure the fixture to a suitable structural surface and follow applicable electrical and safety requirements.
