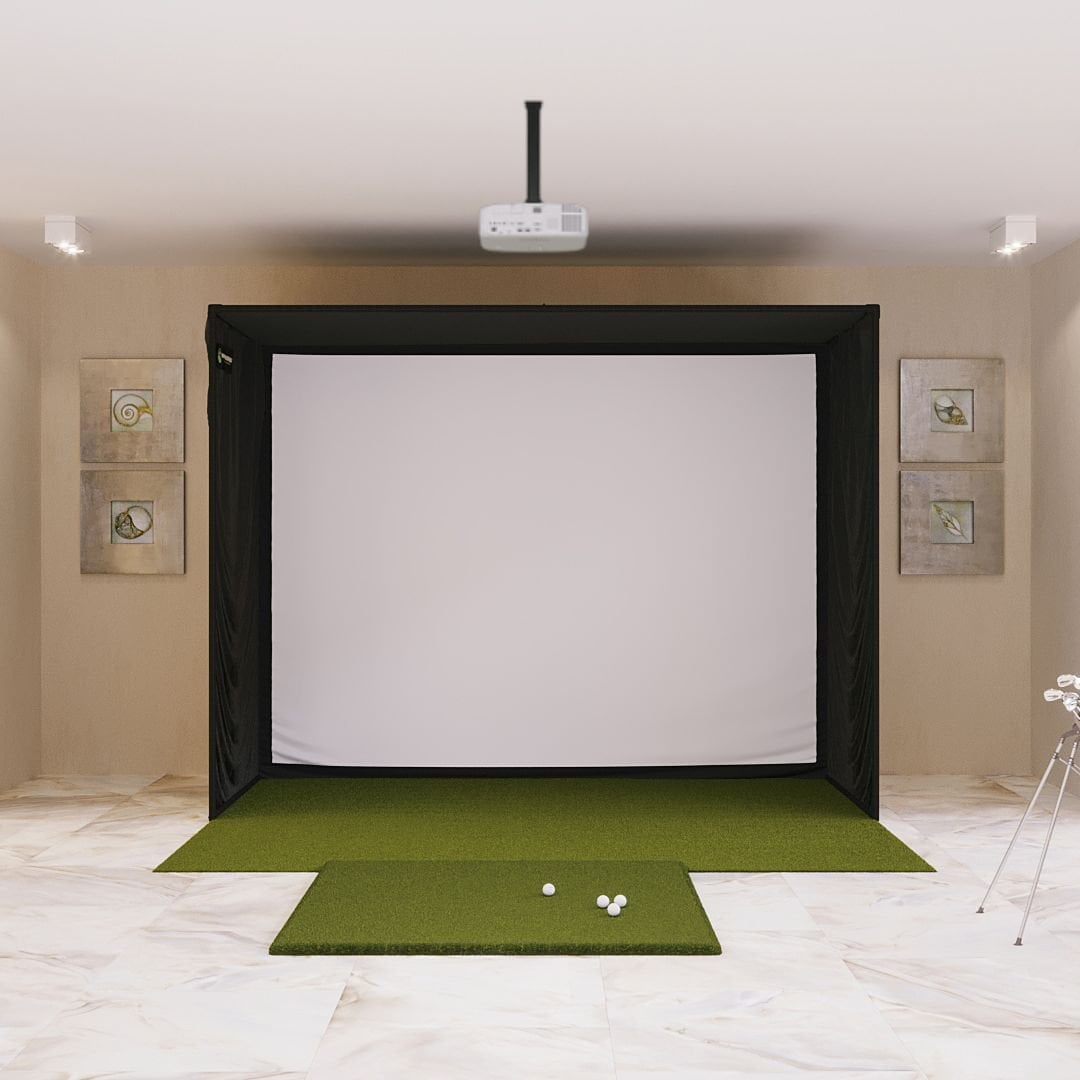

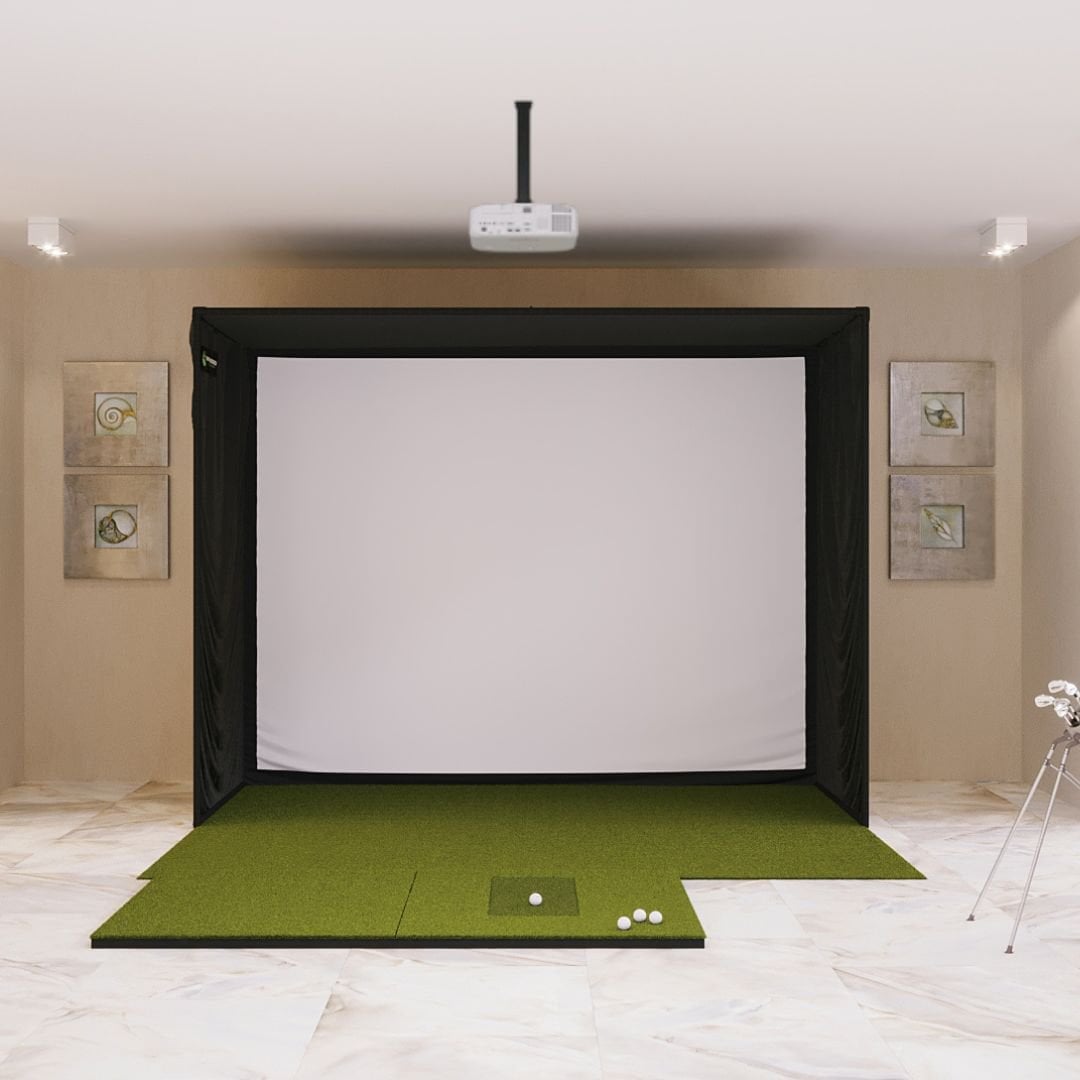

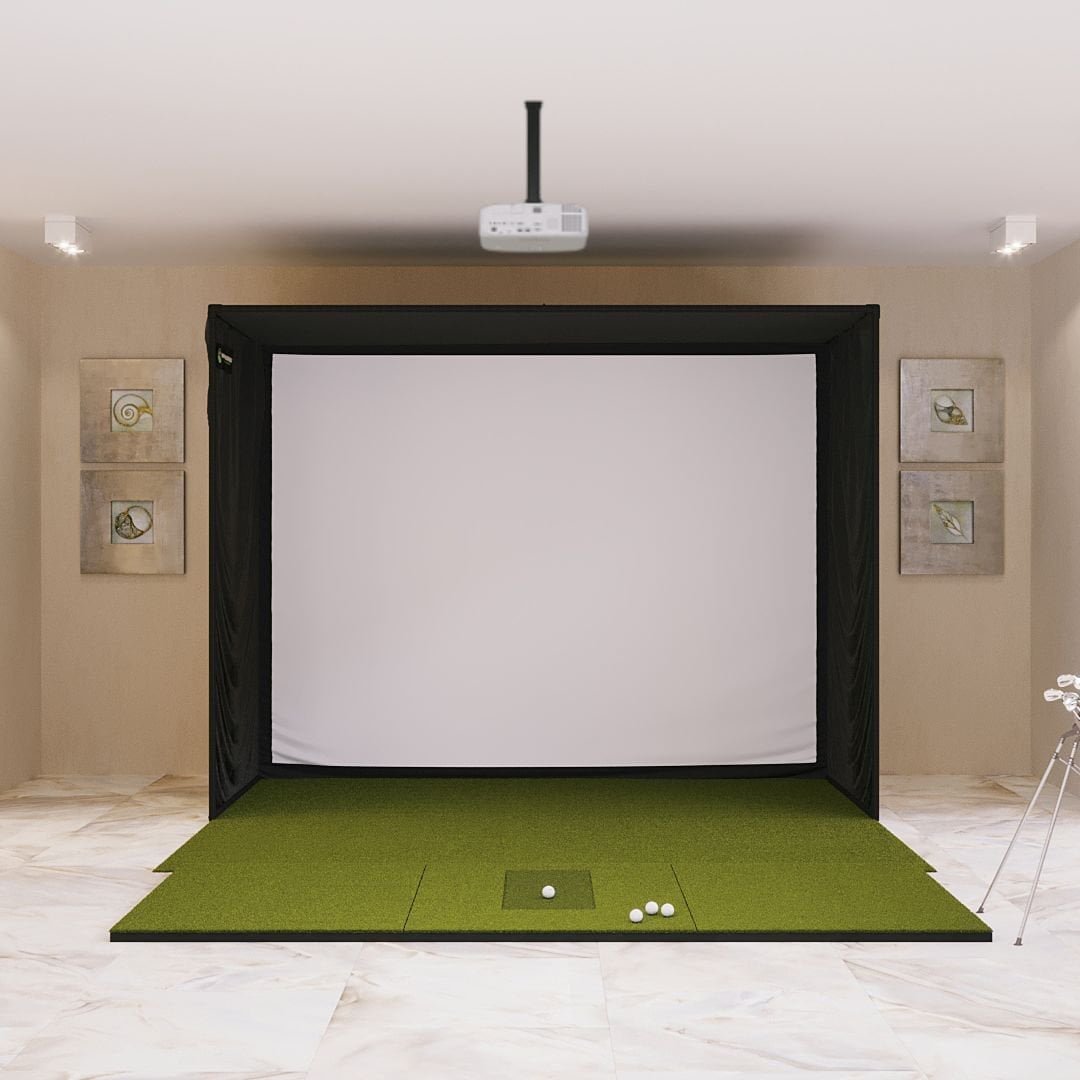

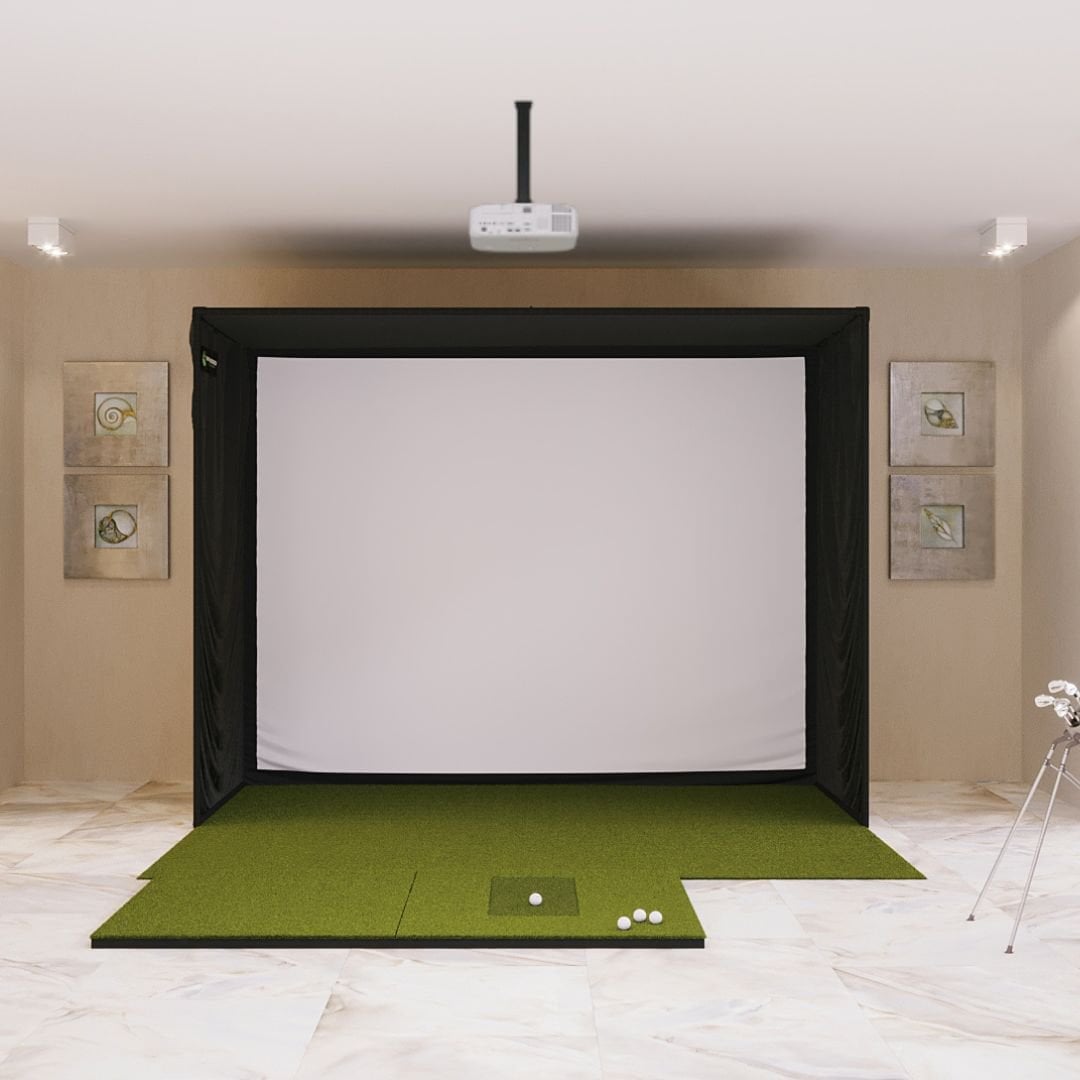

Create a clean, immersive indoor-golf space with a size-matched SIG enclosure, premium white impact screen, landing-pad turf and your selected hitting-surface configuration.
Each studio combines the essential enclosure, screen and hitting-area components in one coordinated package. Choose the model that fits your available width and ceiling height, then select the hitting surface that best matches your practice goals.
The smallest Signature Series studio, designed for rooms where available width is limited.
A balanced 4:3 studio configuration suited to many traditional simulator-room layouts.
The largest Signature Series model, providing a wider and taller projected image for a more immersive experience.
Every configuration includes the essential enclosure components and your selected hitting-surface option.
SIGPRO Premium white impact screen with reinforced vinyl edges and mounting grommets.
Size-matched SIG8, SIG10 or SIG12 enclosure with premium black surround material.
Color-coded push-pin poles and connectors designed to simplify enclosure assembly.
Protective foam padding and 6-inch ball bungees for attaching the screen and surround.
Size-matched turf helps create a finished transition between the enclosure and hitting area.
Choose an available hitting mat or full simulator-flooring configuration.
Required enclosure connections and screen-attachment components are supplied with the package.
Add a compatible launch monitor, projector, computer and software to complete your simulator.
Select the size-matched simulator-flooring option to create a coordinated hitting and putting surface extending approximately 15 feet 6 inches into the room.
| Specification | SIG8 | SIG10 | SIG12 |
|---|---|---|---|
| Enclosure Width | 8'4" | 10'10" | 12'2" |
| Enclosure Height | 8'4" | 8'4" | 9'4" |
| Enclosure Depth | 5' | 5' | 5' |
| Screen Size | 7'7" × 7'7" | 10'1" × 7'7" | 11'5" × 8'7" |
| Screen Diagonal | 10'8" | 12'7" | 14'3" |
| Aspect Ratio | 1:1 | 4:3 | 4:3 |
| Full Flooring Footprint | 15'6"D × 9'8"W | 15'6"D × 11'7"W | 15'6"D × 13'6"W |
| Suggested Ceiling Clearance | Allow 2–3" above enclosure | Allow 2–3" above enclosure | Minimum approximately 9'7" |
Available configurations vary by studio size. Select the option shown for your chosen model on the product page.
A 1-inch-high hitting mat that accepts a real tee and provides a spacious, straightforward hitting platform.
Measures 4'D × 7'W × 2⅝"H, weighs approximately 21 pounds and includes a replaceable hitting strip.
Available with SIG10 and SIG12. Measures 4'D × 10'W × 2⅝"H, weighs approximately 31 pounds and includes a replaceable hitting strip.

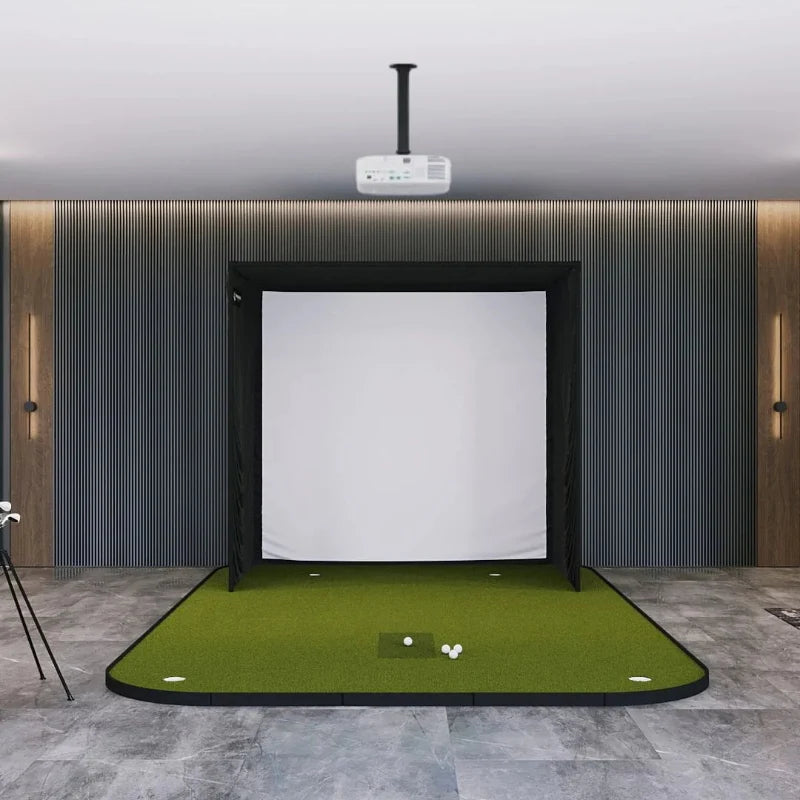

A size-matched hitting and putting floor with four cups, a swappable hitting strip and the ability to hold a real tee.
Verify the enclosure width, height and 5-foot depth, including additional clearance for assembly and screen movement.
Confirm the golfer can safely swing every club from the planned hitting position without contacting the ceiling, walls or enclosure.
Account for launch-monitor requirements, projector throw distance, computer location, power, lighting and cable routing.
