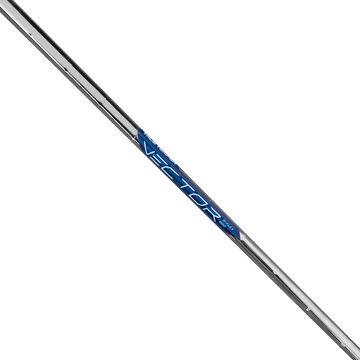

True Temper Vector Iron Shafts
True Temper Vector Iron Shafts
One Shaft Family—Two Optimized Profiles
The True Temper Vector iron shaft family changes weight, handle stiffness and geometry between its Regular and Stiff models. Instead of using the same basic design in two flexes, each Vector option is engineered around the loading and stability requirements of its intended golfer.
The Vector 80 Regular uses a lighter profile and smaller handle diameter to promote easier shaft loading and increased wrist rotation through impact. The Vector 90 Stiff uses a heavier profile and standard-size handle to provide additional stability for players with greater speed or a firmer transition.
Choose Your Vector Profile
Vector 80 Regular
The ultralight Regular profile features a smaller .580″ butt diameter designed to promote easier loading and a more active release through impact.
- Regular flex
- 80g model category
- 90g published raw weight
- .580″ handle diameter
Vector 90 Stiff
The Stiff profile uses a standard .600″ butt diameter and additional weight to create greater handle stability for stronger swings.
- Stiff flex
- 90g model category
- 100g published raw weight
- .600″ handle diameter
Lightweight Steel
Provides a lighter alternative to traditional steel while retaining familiar steel-shaft feedback.
Flex-Specific Geometry
Weight and handle geometry are adjusted to suit the intended loading characteristics of each flex.
Easier Speed
Reduced weight can help golfers generate clubhead speed more efficiently throughout the iron set.
Builder Versatility
The .370″ parallel-tip design allows one master shaft to be trimmed for different irons.
Vector Iron Shaft Specifications
Published raw-shaft weights are measured before club-specific tip and butt trimming.
| Model | Flex | Raw Weight | Length | Tip | Butt | Torque |
|---|---|---|---|---|---|---|
| Vector 80 | Regular | 90g | 40″ | .370″ | .580″ | Low |
| Vector 90 | Stiff | 100g | 40″ | .370″ | .600″ | Low |
Finished shaft weight varies by club number, tip trimming, butt trimming and final playing length.
.370″ Parallel-Tip Compatibility
Vector is supplied as a 40″ master-length shaft with a .370″ parallel tip. It is designed for iron heads with .370″ parallel hosels and must be tip trimmed for the intended club.
Vector is not a direct fit for .355″ taper-tip iron heads. Always confirm the clubhead’s hosel diameter before ordering.
Parallel-Tip Trimming Guide
True Temper provides the following general trimming progression for parallel-tip iron shafts.
| Club | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | Wedge |
|---|---|---|---|---|---|---|---|---|---|
| Tip Trim | 0″ | 0″ | 0.5″ | 1″ | 1.5″ | 2″ | 2.5″ | 3″ | 3.5″ |
Butt trim to the finished playing length after completing the required tip trimming. These are general manufacturer recommendations; an experienced club builder may adjust the build based on the golfer and clubhead.
Who Is It For?
- Golfers seeking lightweight steel performance
- Players who want easier speed generation
- Golfers who prefer flex-specific shaft geometry
- Players who want steel feel without traditional weight
- Iron builds using .370″ parallel-tip hosels
Which Vector Is Right for You?
Vector 80 Regular: Best suited to golfers with moderate speed, a smoother transition or a preference for easier shaft loading and release.
Vector 90 Stiff: Designed for golfers with greater speed, a firmer transition or a preference for increased handle stability.
What Is Included?
This listing is for one uncut 40″ True Temper Vector steel iron shaft in the selected Regular or Stiff configuration with a .370″ parallel tip.
Clubhead, grip, ferrule and installation services are not included unless specifically selected or stated elsewhere on the product page.
Professional Installation Recommended
Vector shafts must be tip trimmed for the intended club before they are butt trimmed to the final playing length.
Correct tip preparation, trimming, ferrule installation, epoxy bonding, final-length measurement and swing-weight management are essential to achieving the intended performance.
View True Temper Trim InstructionsNeed Help Selecting Your Vector Shaft?
Grater Golf can help you choose between the Vector 80 Regular and Vector 90 Stiff profiles and confirm the correct trimming and build specifications for your irons.
Talk to Grater GolfProduct specifications and availability are based on current manufacturer information and may change without notice. Model weight categories and raw uncut weights are not identical. Finished weight varies according to club number, trimming and playing length. Confirm flex and hosel diameter before ordering.
